Bluetooth e-ink ESL 1.54inch electronic shelf label digital price tag for retail

Categories	Retail Electronic Shelf labels Solution
Brand	Sertag Electronic shelf labels Manufacturer
Model	SETR0154R
Display Size	1.54 inch
Outline	44mm(H)x38mm(V)x10.5mm(D)
Weight	23g
Color Display	Black, White and Yellow
Display Resolution	152(H)*152(V)
Communication Band	433MHz/868 MHz /915 MHz
Response Time	9S(Configurable)
Battery Life	Not less than 5 years，Replaceable
Battery	CR2450*1
Download
Update Time	Dec 23,2024

Detail Information

Bluetooth E-ink ESL 1.54inch Electronic Shelf Label Digital Price Tag for Retail

Feature

1. Low energy

2. Black white and red

3. Cloud or local Server based options

4. 433MHz/868 MHz /915 MHz communication

5. 152x152 pixels full graphic, E-Paper displays

6. Perfect for the retails, warehouses, logistics management and meeting system

Model	SETR0154R
Screen Size	1.54inch
Dimension	44mm(H)x38mm(V)x10.5mm(D)
Display Resolution	152*152
Display Type	Bi-stable EPD(E-ink Display)
Display Color	Black white and red
Appearance	Standard unit available with white frame
Unit Identifier Barcode	Recognized by Scanner or Labeling on back
Opereating Temperature	0~50℃
Storage Temperature	-10~60℃
Battery Life	Not less than 5 years，Replaceable
Replaceable Batteries	CR2450*1
Weight	23g
Communications	433MHz/868 MHz /915 MHz
Operating Voltage	2.4V~3.6V

Wireless Communication Technology

ØDisplay update rate: 30 minutes/30 thousands tags.

ØSuccess Rate: 100%.

ØCommunication Band: RF 433MHz.

ØCoverage Distance: 30-50 meters

ØDisplay Templates: Customizable, support for dot matrix (picture).

ØWorking Temperature: 0 ℃ ~40 ℃ or -25 ℃~15 ℃。

ØCommunication interaction: two-way communication, real-time interaction.

ØLife Time: 5 Years, battery can be changed.

ØSystem: Support format text, Excel files, data intermediate table, custom development and other methods.

System Architecture

Solution for Market

Real-time display of the latest price and price type of the supermarket background system and other related information

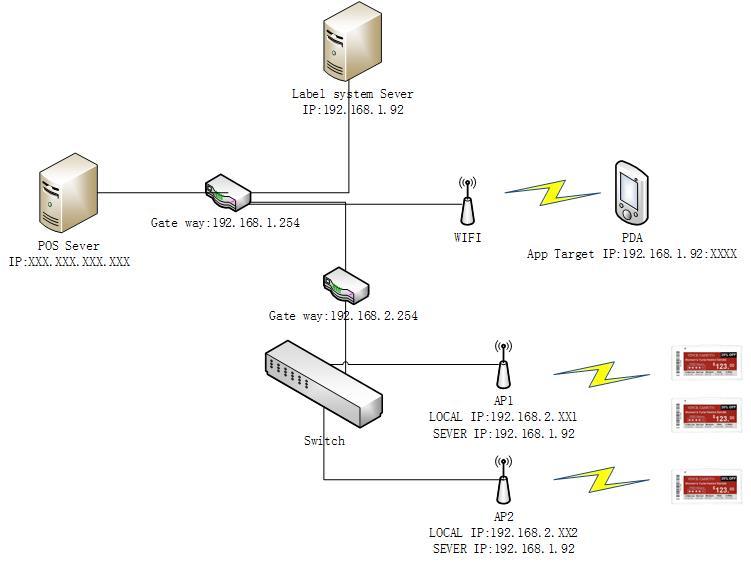

Network Architecture (Single Store Model)

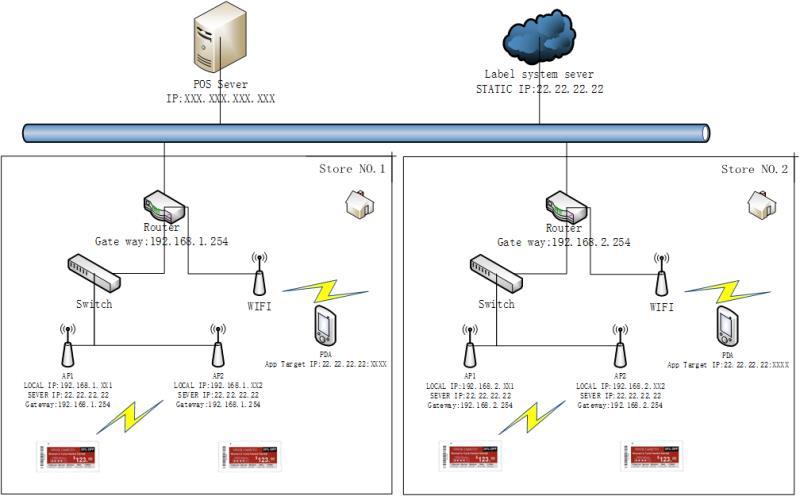

Network Architecture (Multi-Store Model)

Why Choose Sertag's Electronic Shelf Labels?

1. Improve the operation efficiency of commodities

2. In-depth evaluation of the value of each commodity and each location

3. Intelligent display of commodity information

4. Enhance the interaction between products and customers

Advantage

Technical	Prdouct Function	Sertag	HS-COMPANY	HL-COMPANY	B-COMPANY
	Power Dissipation	5--8 years	5years	5years	5years
	Communication Frequency	Multichannel Industry SubG	2.4G	Single channel Industry Subg	2.4G
	Data security level	Encryption technique	no	no	no
	Cost	15% reduction	High	High	High
	Communication Distance	24M	12M	12M	8M
	Speed of communication	2000/hour	700/hour	700/hour	700/hour
	Battery Replacement	Simple, low maintenance cost	Complex, high maintenance cost	Complex,high maintenance cost	Complex,high maintenance cost
	Application	Retail ,logistics, medical treatment, storage	Retail	Retail	Retail

Application

One-stop Electronic Shelf Label Provider
