Electronic price display epd wifi e tag esl e-paper pricing e-Ink epaper labels

Categories	Bluetooth Electronic Shelf Labels
Brand	Sertag Electronic shelf labels Manufacturer
Model	SETB0290R
Display Size	2.9inch
Color Display	white, black and red
Battery	CR2450*2
Outline	93.044.012.3mm
Display Resolution	296*128
Communication Band	2.4G 16-way wireless
Download
Update Time	Dec 29,2024

Contact Now

Favorites

Detail Information

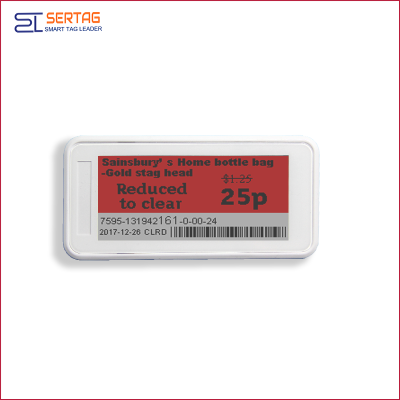

Electronic price display EPD Wi-Fi e tag ESL e-paper pricing e-ink labels

1. Low energy(BLE)

2. Red /Yellow color available

3. Cloud or local Server based options

4. Bluetooth 5.0 wireless communication

5. 296x128 pixels full graphic, E-Paper displays

6. Perfect for the retails, warehouses, logistics management and meeting system

Model	SETB0290R
Screen Size	2.9"
Dimension	93.044.012.3mm
View Area	66.9*29.0mm
Display Resolution	296*128(DPI:112)
Display Type	Bi-stable EPD(E-ink Display)
Display Color	Black and White
Appearance	Standard unit available with white frame
Unit Identifier Barcode	Recognized by Scanner or Labeling on back
Operating Temperature	0℃~50℃(+32℉~122℉)
Storage Temperature	-20℃~70℃(-4℉~158℉)
Battery Life	3~5 years(5 updates/day)
Replaceable Batteries	CR2450*2
Weight	37g
Communications	2.4G 16-way wireless
Frame Colors Available	Yes(MOQ applies)

Software/hardware Architecture 1

• This ESL device are managed by our Gateway.

• The Gateway using MQTT/JSON open API for third part to easy integrate it.

Software/hardware Architecture 2

This ESL provide open API and can be managed by IOS/android app.

Advantages

1. Opening Platform Design

ESL Gateway not only an ESL manager. It’s an open platform to make your ESL and other other sensor easily connect to cloud.

All the interface are opening for third part.

•Support third part ESL/BLE device connect to the cloud via BLE GW;

•Support third part MQTT server;

2.Self-organized deployed

•Once you deployed the ESL(>1000pcs) and Gateway, the relationship between ESL and Gateway will automatic setup within 3~5 minute.

•Gateway supports redundant configuration, once one Gateway down, other Gateway(with in same coverage) will automatic take over ESL management within 10 seconds.

•Gateway support pool load balance deployed, the Customer Inventory System can select an light load Gateway to update price about ESL.

3. Open API Example: ESL monitor

4. Two-way authentication ensures device security

5. Web portal Configuration

6. Open source code/SDK on Google

1).Gateway integration guidance and gateway installation and configuration guidance.

2). The client software Demo supports the connection of the MQTT server address and is based on the Java1.7 version.

3). Convert the BIN formatted image to the demo of the MQTT JSON message, based on the C language implementation, developed using Visual Studio 2010.

We will continue to update the resources to make your develop more easily.

APP SOLUTION :Connection the ESL using APP

• The ESL support bluetooth4.1 and bluetooth 5.0, You can use ipad and iphone to connect to ESL for updates.

• We can provide the bluetooth API for manage the ESL.

• We also provide IOS Android demo app for your quick development. Please noticed that the phone/iPad must support bluetoooth4.1 or bluetooth5.0.
